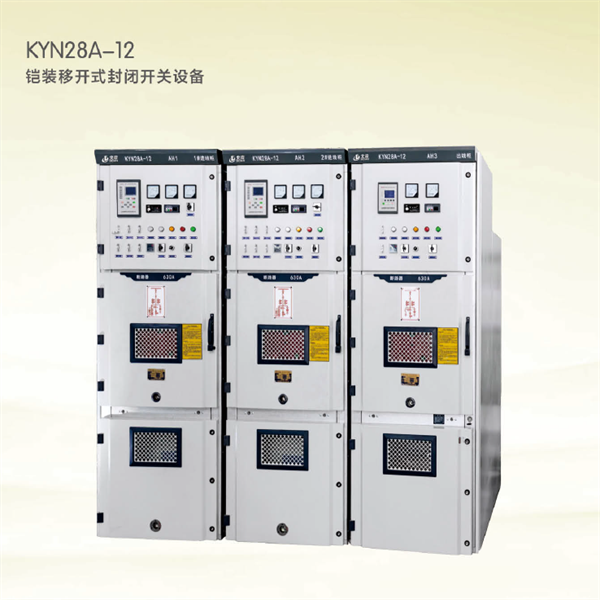

Armored Removable AC Metal-enclosed Switchgear

Name: Armored Removable AC Metal-enclosed Switchgear
Brand: YueBian Electric Co.,Ltd

This equipment is indoor metal armoring with drawable switchgear (hereafter refer to as switchgear. 3.6-12kilovolt three phase AC 50Hz single bus bar and the single bus bar subsection system'scomplete electricity distribution equipment is used in the power plant, small and medium-sized generator power transmission, industry and mining business power distribution as well as electrical industry system's second transformer substation's electric take-over , power transmission and large-scale highvoltage motor starting and so on. The purpose is to control, protect and monitor. This switch equipment is up to the standard of IEC298、GB3906 and can prevent the charge from pushing and pulling the breaker, from opening and closing the breaker, from insulation with electricity by mistaken, from earthed switch closing the breaker ,from opening the switch's interlock when it with electricity mistakenly. It can not only use with VS1 vacuum circuit-breaker, but with ABB Corporation's VD4 vacuum circuit-breaker. It is indeed a kind of power distribution equipment with superior performance.

FREE QUOTE

Products

QUOTE NOW

Introduction
Specification
Contact Now

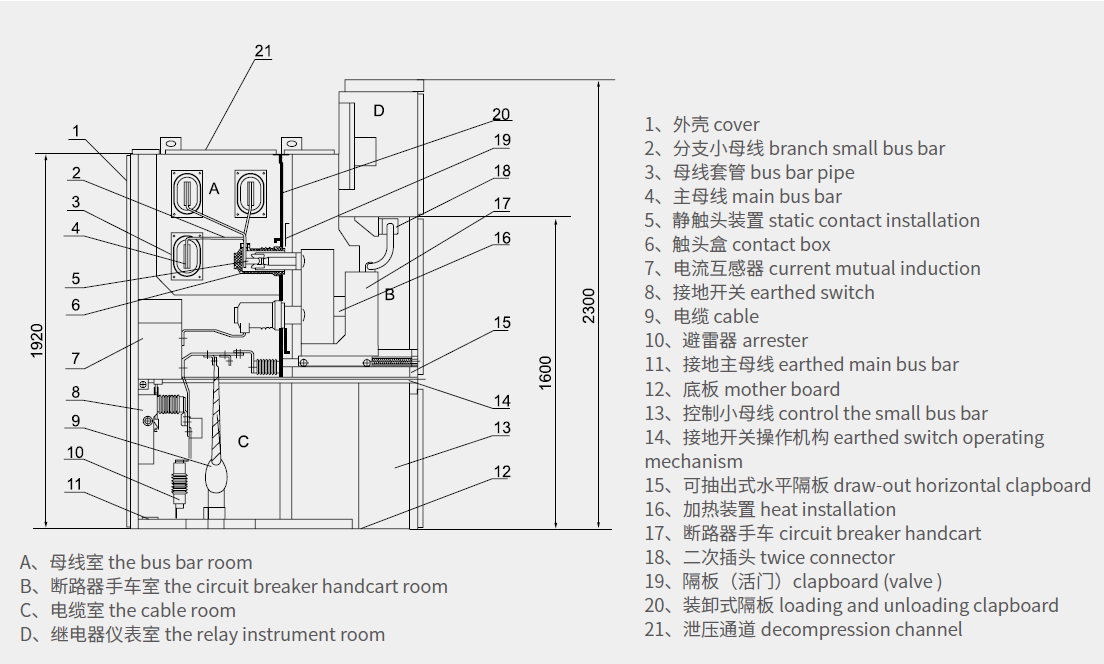

Switchgear structure diagram

Main Technical Parameters

Item	Unit	Data
		equipped with breaker
		ZN63A-12(VS1) 型	VD4 型
Rated voltage	kV	12	12
1min power frequency withstand voltage	kV	42	42
Rated impulse withstand voltage (peak)	kV	75	75
Rated frequency	Hz	50	50
Rated current	A	630、1250、1600、2000、2500、3150、4000、5000
Branch bus bar rated current	A	630、1250、1600、2000、2500、3150、4000、5000
rated short time current (virtual value)	kA	16、20、25、31.5、40、50	16、20、25、31.5、40、50
Rated peak endurable voltage	kA	40、50、63、80、100、125	40、50、63、80、100、125
Rated short-circuit duration	S	4
Protection degree		The enclosure is IP4X, and the compartment door and handcompartment door are IP2X when opened
Weight	kg	700~1200	700~1200

Use environmental conditions
1. Normal condition
a. Surrounding air temperature: -10℃～ +40℃
b. Altitude: 1000M
c. Relative environment humidity: The daily relative humidity average is not higher than 95%, the monthly relative humidity average is not than higher 90%
d. Earthquake: The intensity does not exceed 8 degrees.
e. The surrounding air without corrosive or flammable gas or water vapour.
f. Without a lot of dirtiness and regular fierce vibration, under the severe condition, the intensity meets the first kind requirement.
2. special working conditions * When it is used beyond the normal environmental condition stipulated in the GB3906, the user should consult with the manufacture.
