Scb 10 Rl 10kv Dry-Type Transformer

Summary

The resin-insulated dry-type transformer is a safe, fire-retardant, fireproof, pollution-free transformer directly installed in the load center. With the improvement of people's living condition, the urban and rural electrical load increases continuously, and the oil-free, fireproof, safe, and reliable dry-type transformer with a long service life and simple maintenance has been applied more widely. This new transformer is independently developed by the company and designed and produced in strict accordance with national standard with the latest technology of Germany.

Introduction
1. Brief Description:
The resin-insulated dry-type transformer is a safe, fire-retardant, fireproof, pollution-free transformer directly installed in the load center. With the improvement of people's living condition, the urban and rural electrical load increases continuously, and the oil-free, fireproof, safe, and reliable dry-type transformer with a long service life and simple maintenance has been applied more widely. This new transformer is independently developed by the company and designed and produced in strict accordance with national standard with the latest technology of Germany. Owing to the adoption of German filling-included vacuum casting technology and the introduction of "positive-pressure-casting" new process technology, the reliability, fire resistance and humidity resistance of the product are further improved, the coil surface doesn't need painting and grinding, and the insulating property of the product is greatly increased.

2. Application Scope
The resin-insulated dry-type power transformer mainly applies to hotels, high-rise buildings, business centers, residential quarters, stadiums, factories, airports, ports, subways, and mines underground, etc, and is especially suitable for the areas with special fireproof requirements, for example, limited installation space and load center of cities and towns.

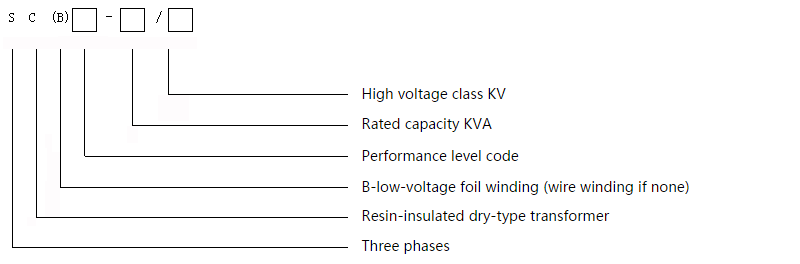

3. Model Description


4. Standards

GB1094.1, GB1094.2, GB1094.3, GB1094.5, GB1094.11
IEC 60076-1:2000, IEC 60076-2:1993, IEC 60076-3:2000, IEC 60076-5:2006, IEC 60076-11
GB/T 10228, GB20052, etc

5. Normal Service Conditions
Height above sea level: Not greater than 1,000m;
Ambient temperature: Maximum temperature: +40ºC;
Maximum daily average temperature: +30ºC;
Maximum annual average temperature: +20ºC;
Minimum outdoor temperature: -25ºC;
Installation environment: ground acceleration caused by earthquake: ag<2m/s

6. Features
1. The coil is resin-cast, with good overall mechanical strength, thus improving the ability of the transformer to withstand the short circuit.
2. With very good humidity resistance and corrosion resistance, the product is especially suitable to work in extremely harsh environment, and may be put into operation again without drying after stopping operation.
3. Low partial discharge and long operation life.
4. Free from oil and pollution, fire-retardant, flame-retardant, self-extinguishing and fireproof.
5. Convenient installation, free from debugging and maintenance, and low operation cost.
6. Perfect temperature protection control system provides reliable guarantee for the safety of transformer.

Company Profile
Yuebian Electric Co., LTD is a professional electrical manufacturer engaged in power transformer up to 35kv and other electrical equipment. For instance, amorphous alloy power transformer, dry-type transformer, oil-immersed transformer, with type, combined transformer substation, high and low voltage complete switchgear, rectifier transformer, electric furnace transformer, mining and other special purpose transformer. After nearly 10 years of development, Yuebian Electric has now become one of the major suppliers of Chinese state grid and southern power grid.
Yuebian electric is located in Yueqing City, Zhejiang Province. As the forefront of reform and opening up, Yueqing provides us convenient traffic conditions. Our Industrial park covers an area of 20000 square meters, and the annual design production capacity is almost 300 million dollars. The modern garden-like factory has several functions, for example production, technology development, staff living, learning and entertainment. Hereinto, production plant owns 2 spacious and bright body building, 11 workshops, and more than 260 sets of advanced production and testing instruments, which guarantee the high quality of our production; Perfect function design of the complex and the r&d center adopt ERP management system which provide an advanced platform for e-commerce, operations management, and the product innovation; At the same time,  our quiet and graceful staff living area provides employees with a comfortable living environment which owns dine, entertainment, information, learning, and other functions
Currently, Yuebian electric has more than 30 senior engineering and technical talents, including 5 senior engineers. The strong technical force provide us with effective guarantee about product research and development. The company has got the certification of ISO9001:2008 quality management system.
